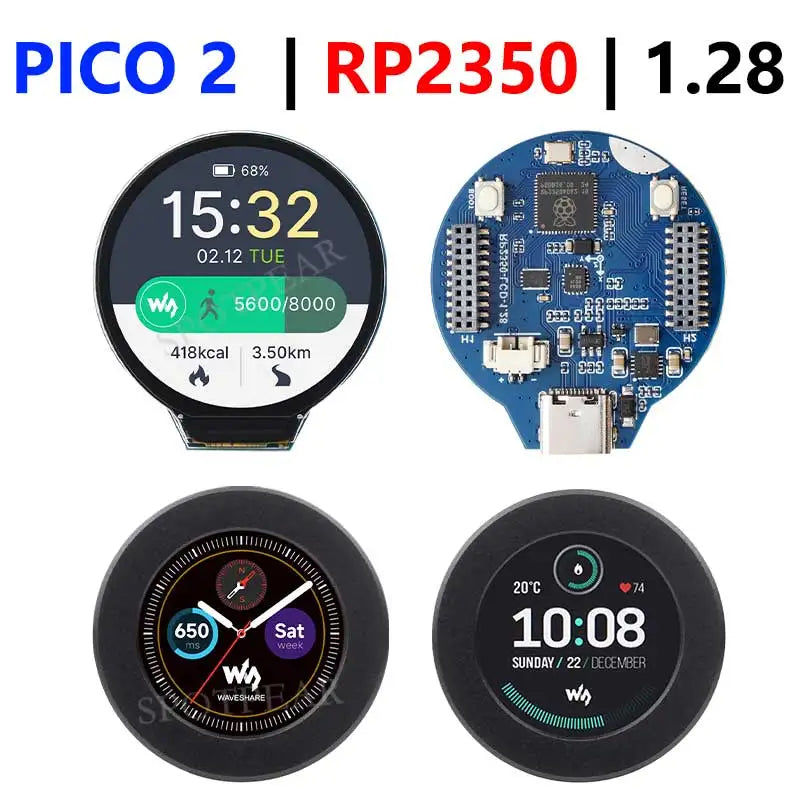

Raspberry Pi Pico 2 RP2350 1.28 inch Round LCD Development Board With Case Option Display Screen QMI8658 6-Axis

With-Touch-With-Case

€26,51

Raspberry Pi Pico 2 RP2350 1.28 inch Round LCD Development Board With Case Option Display Screen QMI8658 6-Axis

€26,51

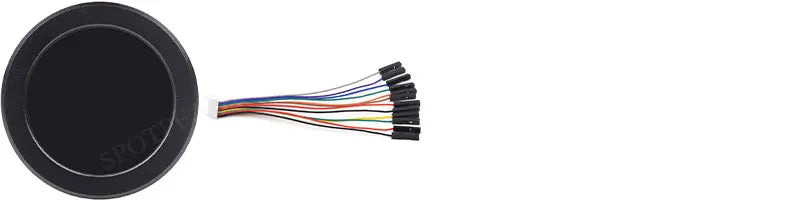

Color With-Touch-With-Case With-Touch No-Touch-With-Case No-Touch

SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: No

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi PICO

High-concerned chemical: None

Origin: Mainland China

semi_Choice: yes

RP2350 Microcontroller Development Board

Designed based on Raspberry Pi RP2350

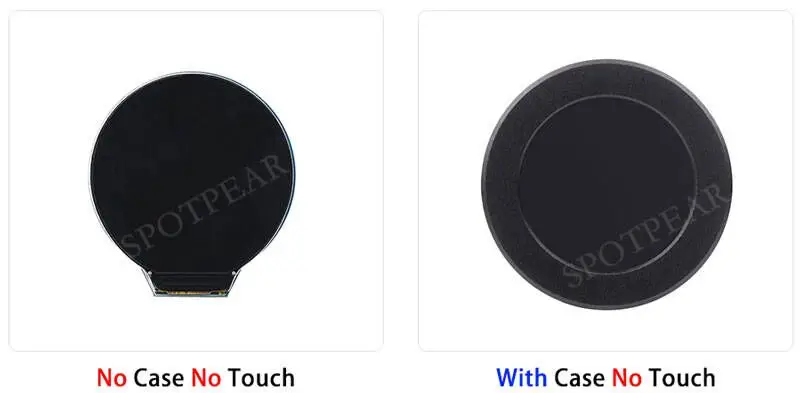

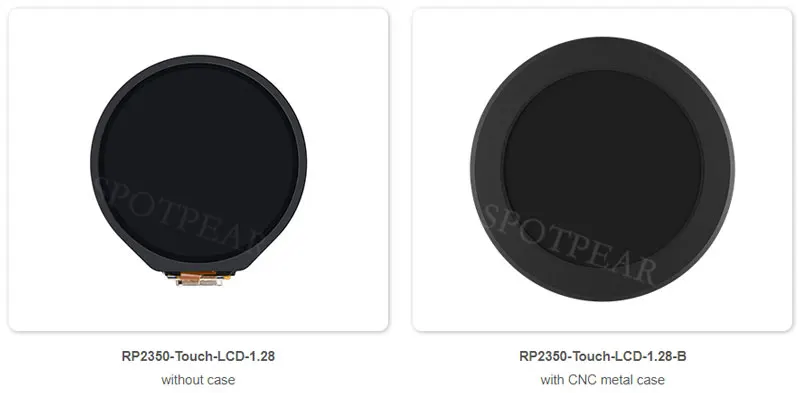

Version Selection

Product Features

This product is a low-cost, high-performance microcontroller development board designed by Spotpear. In a small form factor, it is equipped with a 1.28-inch LCD round screen, a lithium battery charging chip, and six-axis sensors (three-axis acceleration and three-axis gyroscope) and other peripherals, and all GPIO and Debug interfaces are brought out to facilitate development and embedding applications into products.

The main functional features are：

RP2350 microcontroller chip designed with Raspberry Pi
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, running at up to 150MHz Flexible clock
Built-in 520KB SRAM and 4MB on-chip Flash
Adopt Type-C interface, keep up with the trend of the times, no need to worry about plugging in the right or wrong direction

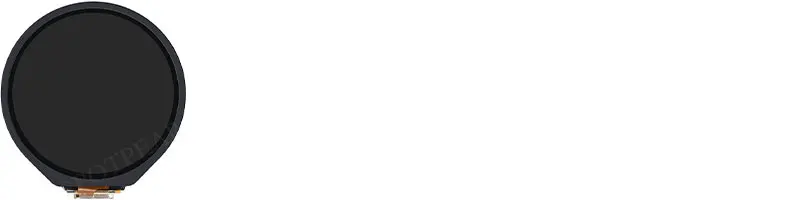

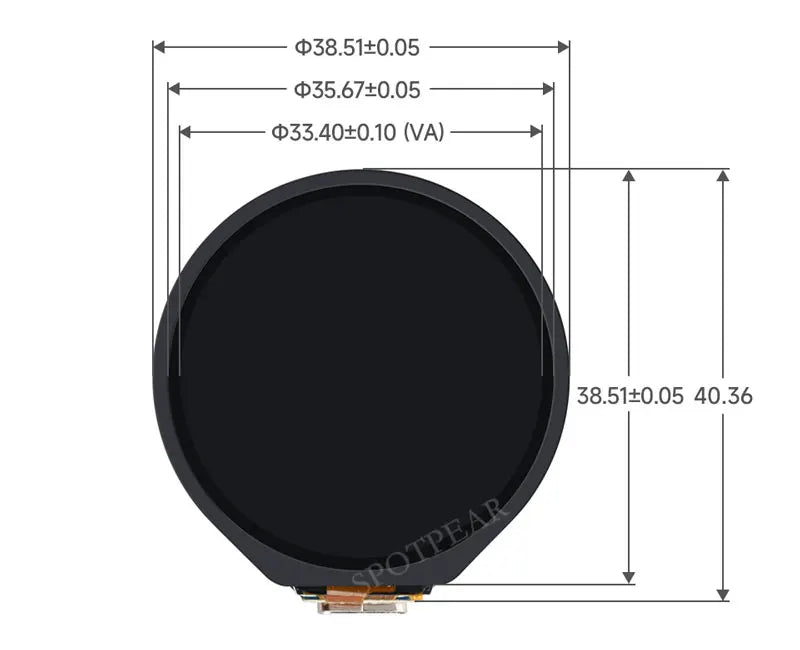

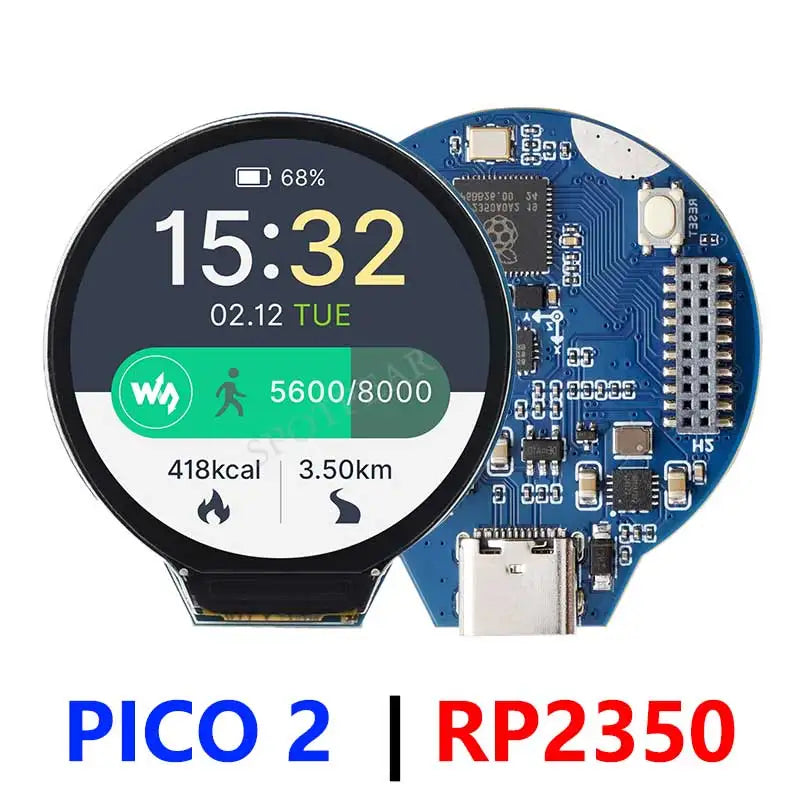

Onboard 1.28-inch 240 × 240 resolution, 65K color IPS LCD display, can clearly display color images
Onboard lithium battery charging and discharging interface, which is convenient for mobile use
All GPIOs are led out through 1.27mm pitch female headers (30 in total, some pins are already connected to the internal circuit, please pay attention when multiplexing)
USB1.1 host and device support
Supports low power sleep and hibernation modes
Drag-and-drop program downloading via USB recognition as mass storage
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 24 controllable PWM channels
Temperature Sensor
12 Programmable I/O (PIO) state machines for custom peripheral support

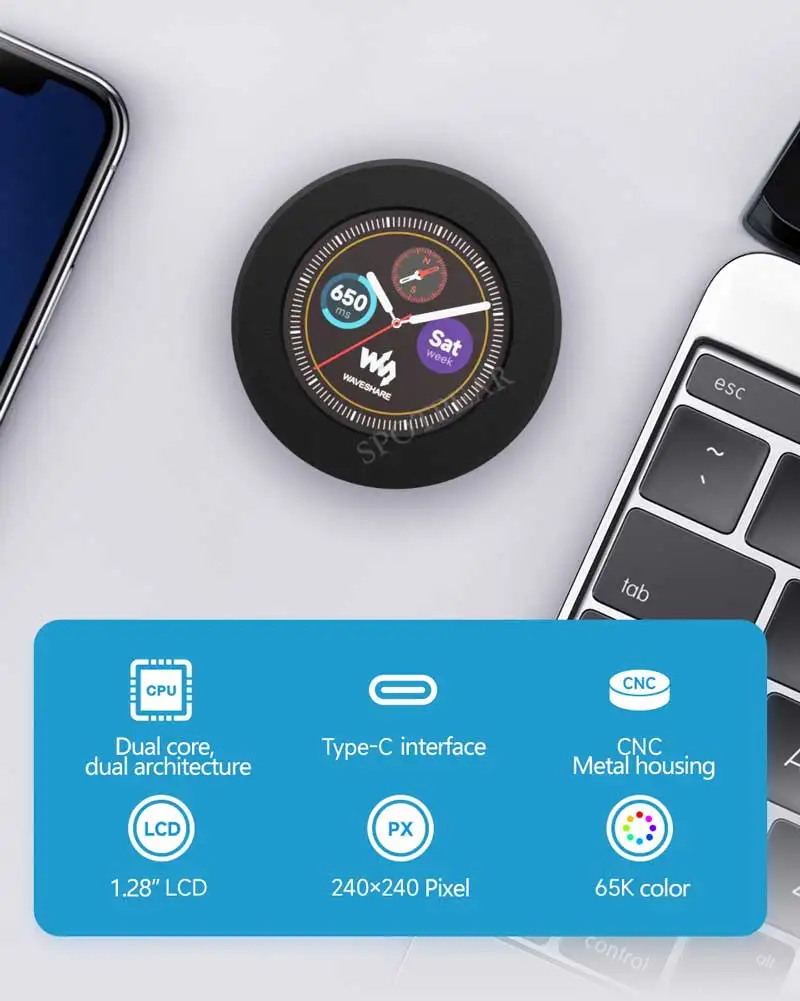

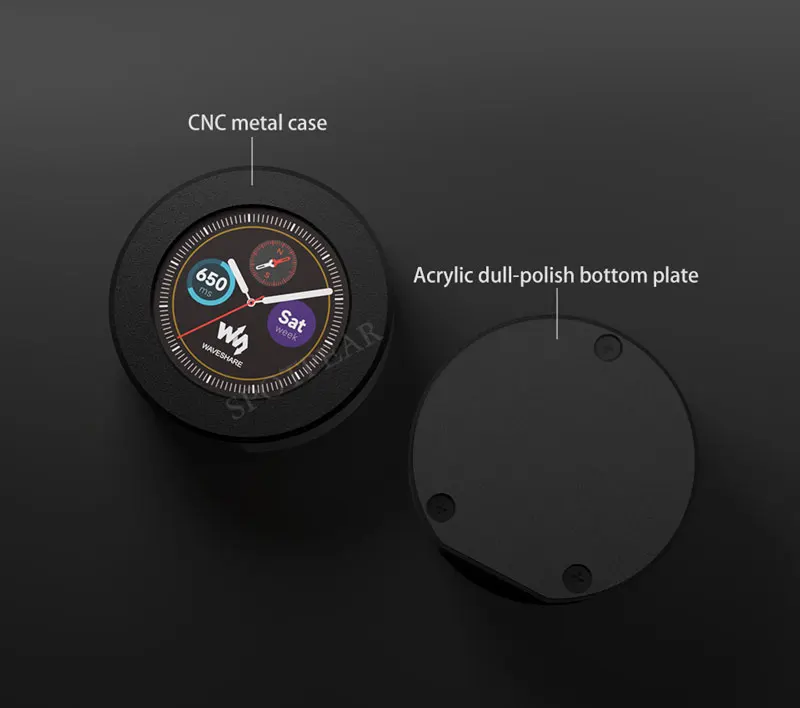

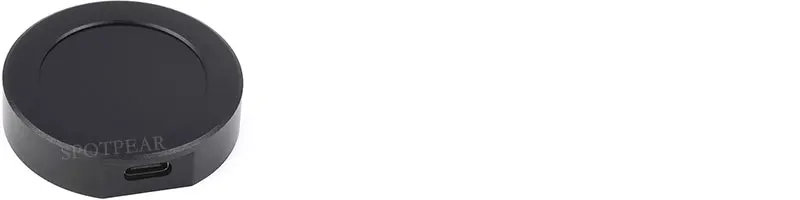

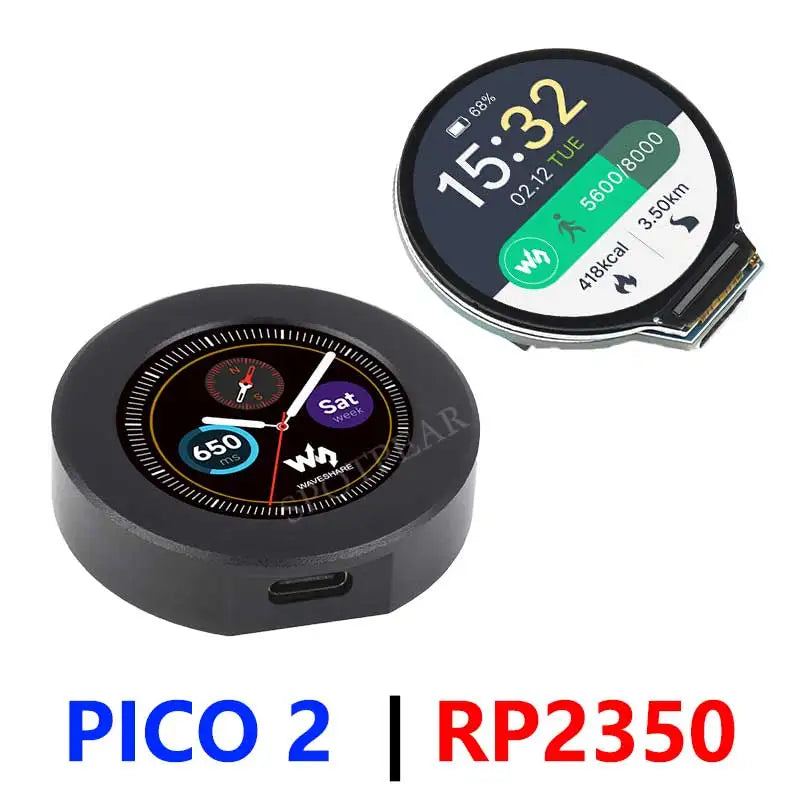

Optional Metal Case Version
CNC Metal Shell Helps To Quickly Dissipate Heat, And The Frosted Surface Is More Textured

Support C/C++, MicroPython
Complete SDK And Open Source Tutorials Are Provided To Make It Easy To Get Started And Can Be Quickly Embedded Into Applications

Unique Dual-Core, Dual-Architecture
The RP2350'S Unique Dual-Core, Dual-Architecture Capability Allows Users To Switch Between A Pair Of Industry-Standard Arm Cortex-M33 Cores And A Pair Of Open Hardware Hazard3 Cores, Giving Developers The Opportunity To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment.

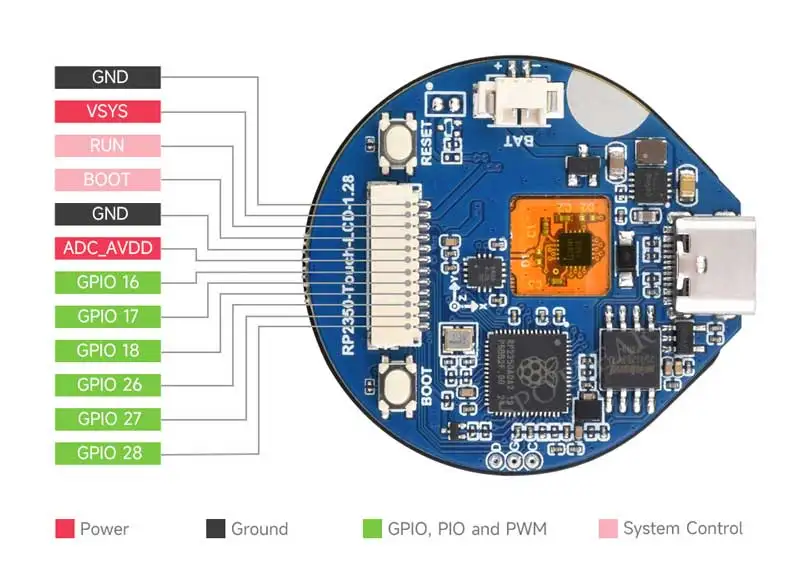

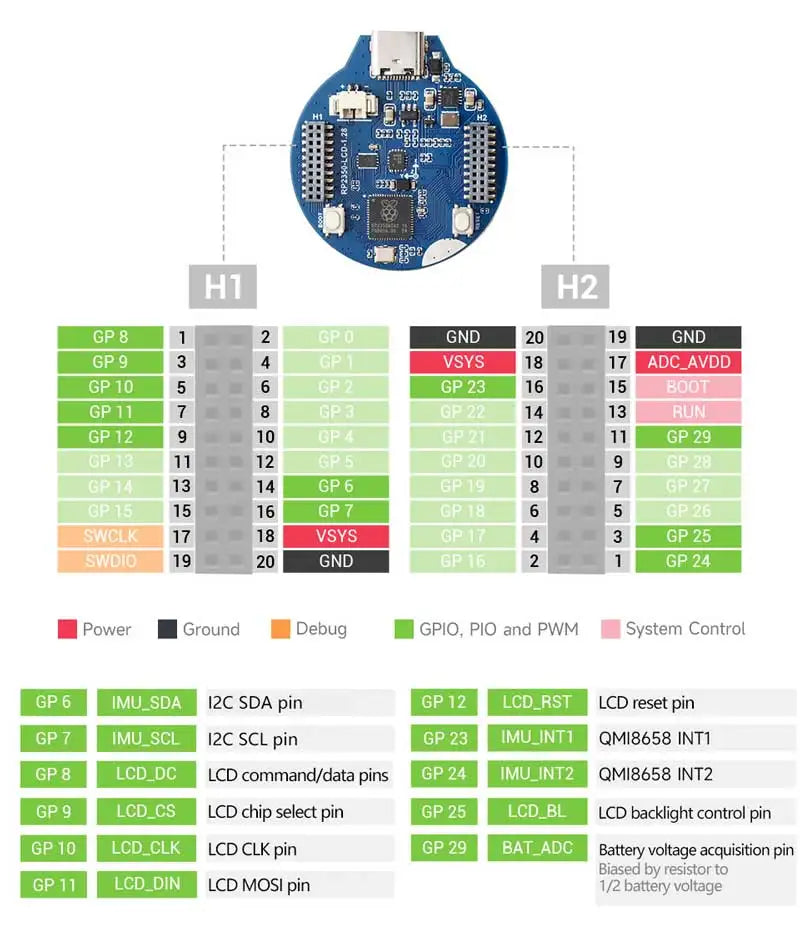

30 Multi-Function GPIO Pins
Supports Configuration Pin Function, Which Can Be Easily And Flexibly Developed And Integrated

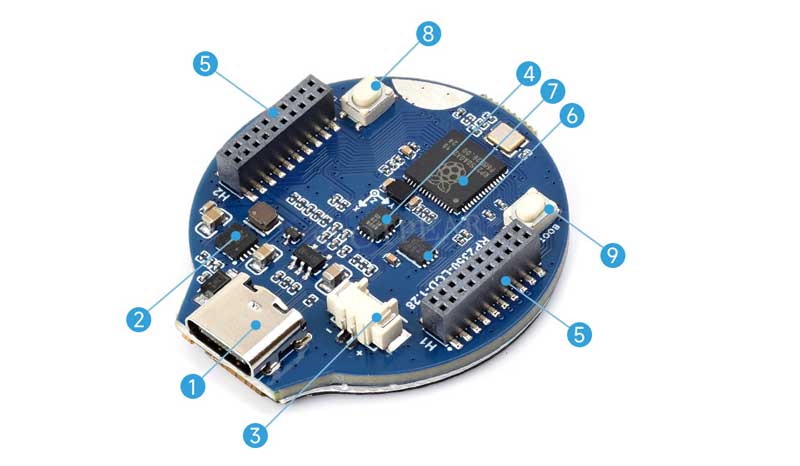

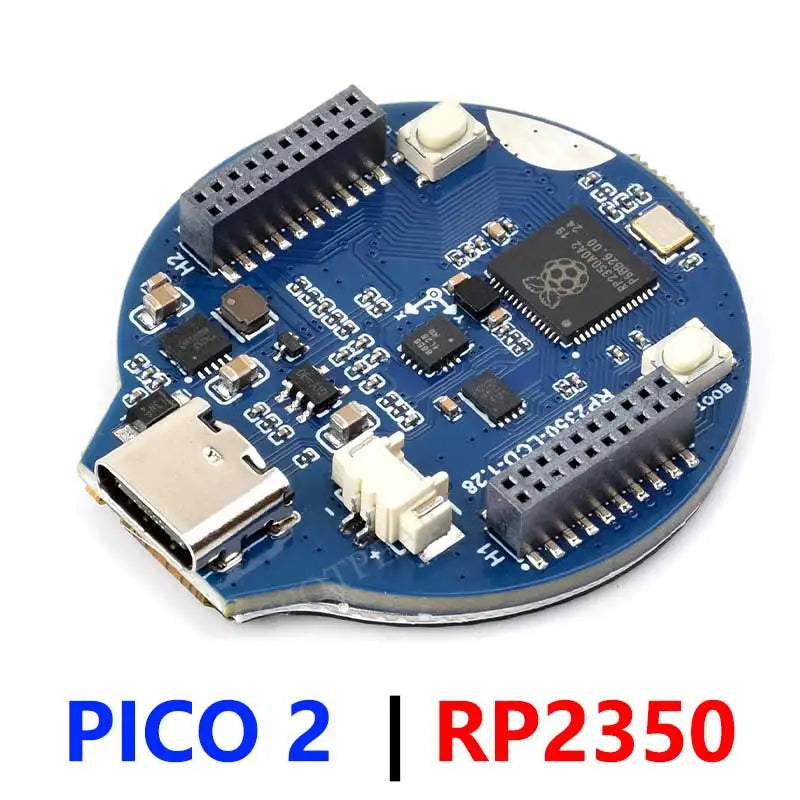

Resource Brief

1. USB Type-C port Can be used to download programs and supports USB1.1 host and slave devices	5. 1.27mm spacing pin header Bring out all GPIO and Debug interfaces
2. ETA6098 High-efficiency lithium battery charging chip	6. P25Q32SH-UXH-IR 4MB NOR-Flash
3. Battery interface MX1.25 connector, can be used to connect 3.7V lithium battery, supports charging and discharging	7. RP2350 Dual Core ARM Cortex-M33 Dual Core Hazard3 RISC-V @150MHz
4. QMI8658 Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer	8. RESET button Reset button
	9. BOOT button Press during reset to enter download mode
